Product Details

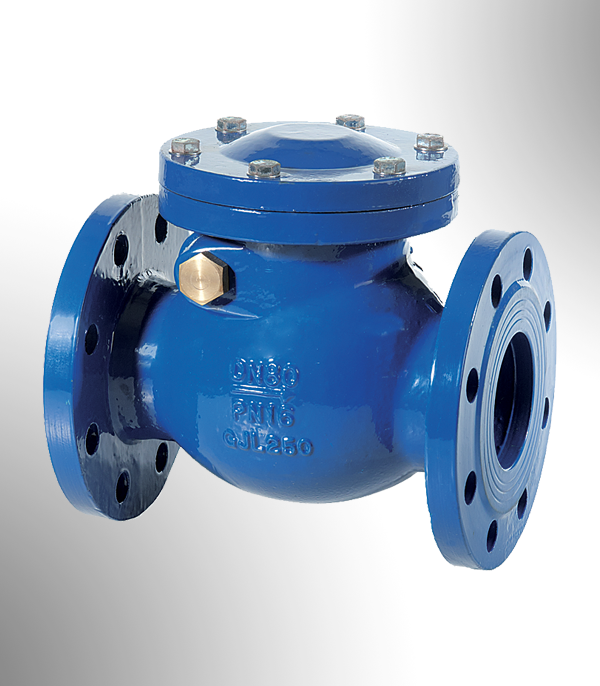

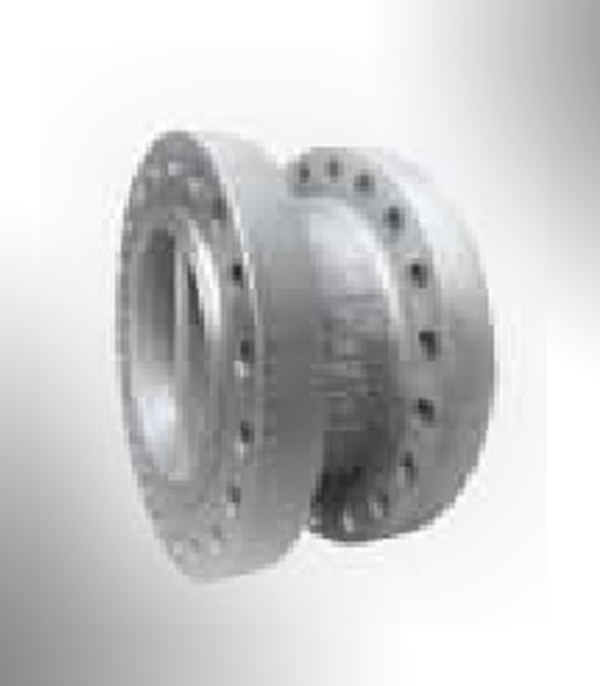

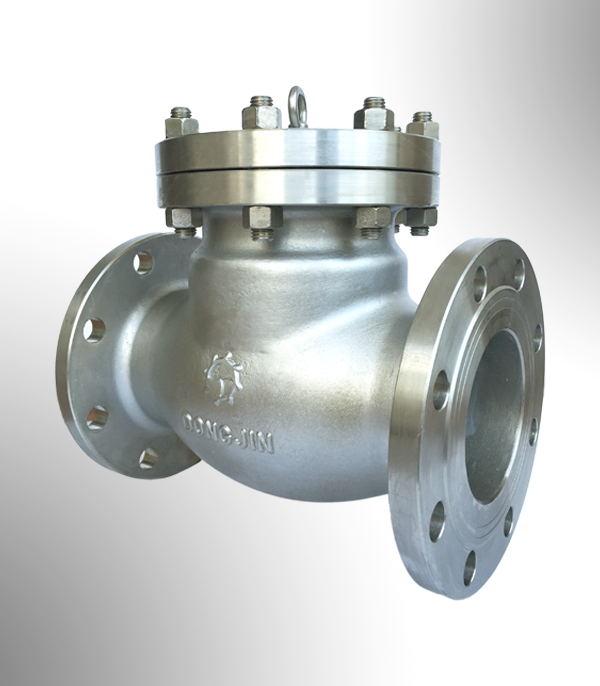

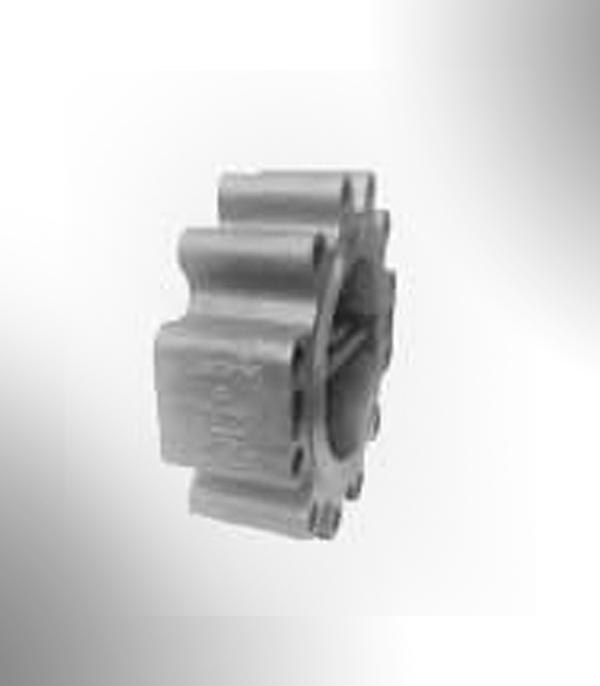

Check Valve

Variant Product

Swing Check Valve, Pressure Sealed Swing Check Valve, Dual Plate Check Valve

Product Features

  • Bolted Cover (BC), Pressure Sealed Cover (PSC), Welded Cover (WC)
  • Lift Type, Swing Type, Titling type, Axial flow type, Dual plate type
  • Horizontal or Vertical installation, Full internal hinge pin
  • Renewable seat or integrated seat
  • Flanged or butt-welding connection, Water, lug, Clamp type and connection
  • Casted or fogged body

SKU

DL- 99-1

  • Technical Parameters
    • Design Standart : API 594, BS 1868, API 60, ASME B16.34 etc.
    • Rating : CL150 – CL4500
    • Size : NPS 2-NPS 108
    • Test Standart : API 598, API 60
    • Operation : Damper is optional
    • Temp : -46^ C – 750^C
    • Medium : Petroleum, Natural Gas, Water, Steam, Hydrocarbon
  • Material Range
    • Carbon Steel, Alloy Steel, Duplex Steel, Monel, Low Carbon Steel, Stainless Steel, Inconel, Hastelloy
  • Optional Features
    • NACE MR 0175/NACE MR 0103
    • NIC/SSC
    • Fuginitive emmision design
    • Fire safe design
    • Free of Oil & Water
    • Pup piece
    • Bypass
    • Insulation packet
